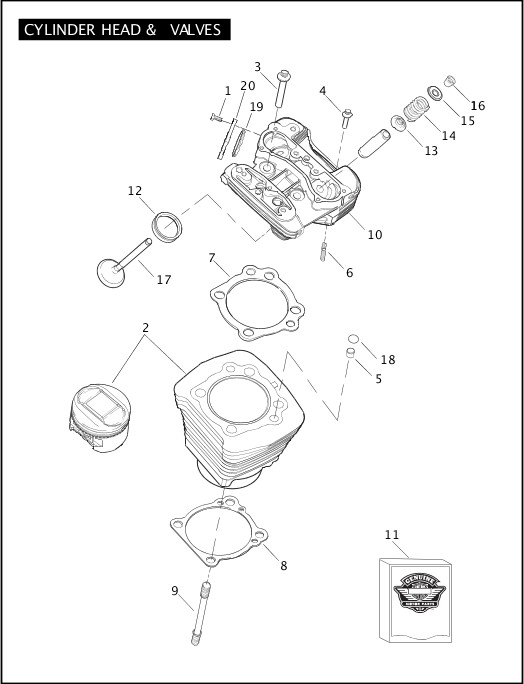

16038-04
|
ENGINE ASSEMBLY, w/o front isolator mount attached (not illustrated) |
XB9S, XB9SL |
|
|
16124-04
|
ENGINE ASSEMBLY, w/o front isolator mount attached (not illustrated) |
XB12S |
|
| 1 |
3987
|
BOLT (used w/ 16875-07A) (2) |
XB9S, XB9SL, XB12S |
|
| 2 |
16466-04A
|
CYLINDER, w/ piston & rings |
XB12S |
|
| 2 |
22710-02A
|
CYLINDER, w/ piston & rings |
XB9S, XB9SL |
|
| 3 |
16478-85A
|
SCREW, internal thread (4) |
XB9S, XB9SL, XB12S |
|
| 4 |
16480-92A
|
SCREW, internal thread (chrome) (4) |
XB9S, XB9SL, XB12S |
|
| 5 |
16573-83A
|
INSERT, cylinder stud (4) |
XB9S, XB9SL, XB12S |
|
| 6 |
16715-83
|
STUD, exhaust port (4) |
XB9S, XB9SL, XB12S |
|
| 7 |
16770-84F
|
GASKET, cylinder head (2) |
XB9S, XB9SL, XB12S |
|
| 8 |
16774-86D
|
GASKET, cylinder base (2) |
XB9S, XB9SL, XB12S |
|
| 9 |
16832-86C
|
STUD, cylinder base (8) |
XB9S, XB9SL, XB12S |
|
| 10 |
16872-02
|
HEAD ASSEMBLY, front cylinder, w/ 18011-86 & 18020-83 |
XB9S, XB9SL, XB12S |
|
| 10 |
16875-02
|
HEAD ASSEMBLY, rear cylinder, w/ 18011-86 & 18020-83 (use 16875-07A) |
XB9S, XB9SL, XB12S |
|
| 10 |
16875-07A
|
HEAD ASSEMBLY, rear cylinder, w/ 3987, 18011-86, 18020-07, 26995-86B & 27327-07 (replaces 16875-02) |
XB9S, XB9SL, XB12S |
|
| 11 |
17058-02D
|
GASKET KIT, engine overhaul |
XB9S, XB9SL, XB12S |
|
| 11 |
17059-02B
|
GASKET KIT, top overhaul |
XB9S, XB9SL, XB12S |
|
| 11 |
18011-86
|
SEAT, exhaust valve (not illustrated) (2) |
XB9S, XB9SL, XB12S |
|
| 12 |
18020-07
|
SEAT, intake valve (used w/ 16875-07A) (2) |
XB9S, XB9SL, XB12S |
|
| 12 |
18020-83
|
SEAT, intake valve (used w/ 16872-02 & 16875-02) (2) |
XB9S, XB9SL, XB12S |
|
| 13 |
18094-02A
|
COLLAR/SEAL, valve stem (4) |
XB9S, XB9SL, XB12S |
|
| 14 |
18245-02
|
SPRING, valve (4) |
XB9S, XB9SL, XB12S |
|
| 15 |
18258-02
|
COLLAR, valve spring, upper (4) |
XB9S, XB9SL, XB12S |
|
| 16 |
18260-02
|
RETAINER, valve collar (8) |
XB9S, XB9SL, XB12S |
|
| 17 |
18690-02
|
VALVE, intake (2) |
XB9S, XB9SL, XB12S |
|
| 17 |
18691-02
|
VALVE, exhaust (2) |
XB9S, XB9SL, XB12S |
|
| 18 |
26432-76A
|
O-RING, cylinder stud insert (4) |
XB9S, XB9SL, XB12S |
|
| 19 |
26995-86B
|
SEAL, intake manifold (used w/ 16875-07A) |
XB9S, XB9SL, XB12S |
|
| 20 |
27327-07
|
MOUNTING FLANGE, intake manifold (used w/ 16875-07A) |
XB9S, XB9SL, XB12S |
|
