1996-1997 Buell S1 Lightning Parts Catalog
1997

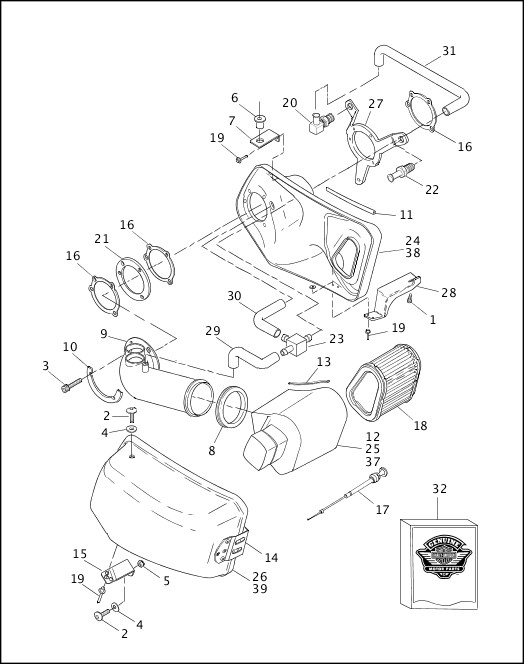

AIR CLEANER & ENRICHENER CABLE
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AN1004.2CZ | SCREW | ALL | |
| 2 | AA0406.11CVB | SCREW (2) | ALL | |
| 3 | 2865Y | SCREW (3) | ALL | Feb 2010 |
| 4 | BA0409.6BL | WASHER, nylon (2) | ALL | |
| 5 | DA0400.2CZ | LOCKNUT | ALL | |
| 6 | 64511-63 | WELL NUT | ALL | |
| 7 | P0552.9 | BRACKET, upper air cleaner cover | ALL | Oct 2009 |
| 8 | 27546-96Y | GROMMET, snorkel | ALL | |
| 9 | P0554.9 | SNORKEL, air cleaner | ALL | Nov 2014 |
| 10 | P0556.9C | SNORKEL PLATE | ALL | Nov 2014 |
| 11 | 27551-96Y | TRIM, backplate | S1 1996 | |
| P0559.9-39 | TRIM, backplate | S1 1997 | ||
| 12 | 27588-96Y | AIR FILTER BOX (use Z1048.9) | S1 1996 | |
| 27588-97Y | AIR FILTER BOX (use Z1048.9) | S1 1997 | ||
| 13 | M0720.C-18 | SEAL, air filter box | ALL | |
| 14 | P0560.9B | BRACKET, front air cleaner cover | S1 1996 | Aug 2008 |
| 15 | P0561.9B | BRACKET, rear air cleaner cover | ALL | Sep 2009 |
| 16 | 29059-88A | GASKET (3) | ALL | |
| 17 | 29229-88D | CABLE, enrichener | ALL | |
| 18 | P0213.9 | FILTER ELEMENT | ALL | Nov 2014 |
| 19 | M0092.8 | RIVET (11) | ALL | Feb 2010 |
| 20 | P0235.9A | FITTING, breather, 90 degree | ALL | Oct 2013 |
| 21 | 29265-88 | SPACER, air cleaner | ALL | |
| 22 | P0235.9B | BOLT, breather | ALL | |
| 23 | HO0203.8B | BREATHER TEE | ALL | |
| 24 | 29359-96Y | AIR CLEANER BACKING PLATE ASSEMBLY, w/ 6, 7, 11, 16, 28 & 29 (use Z1048.9) | S1 1996 | |
| P1214.C | AIR CLEANER BACKING PLATE ASSEMBLY | S1 1997 | Sep 2009 |
|
| 25 | 29360-96Y | FILTER BOX ASSEMBLY, w/ 8, 12 & 13 (use Z1048.9) | S1 1996 | |
| 26 | 29361-96Y | AIRBOX COVER ASSEMBLY, w/ 14, 15 & 29 (use Z1048.9) | S1 1996 | |
| P1215.C | AIRBOX COVER | S1 1997 | Sep 2009 |
|
| 27 | 29365-96Y | AIR CLEANER SUPPORT | ALL | |
| 28 | 29369-96Y | FRONT SUPPORT, air cleaner (use Z1048.9) | S1 1996 | |
| 29 | 63511-93 | BREATHER HOSE, snorkel | S1 1996 | |
| 62683-93A | BREATHER HOSE, snorkel | S1 1997 | ||
| 30 | 62370-96Y | BREATHER HOSE, front cylinder (use 62683-93A) | S1 1996 | |
| HS0201.C | BREATHER HOSE, front cylinder | S1 1997 | Sep 2011 |
|
| 31 | 63515-92 | BREATHER HOSE, rear cylinder | ALL | |
| 27653-97Y | BREATHER HOSE, rear cylinder (use 63515-92) | S1 1997 | ||
| 32 | Z1048.9 | AIRBOX REPLACEMENT KIT | ALL | Mar 2010 |
| 33 | 29421-97Y | SEAL, airbox cover (not illustrated) | S1 1997 | |
| 34 | 29422-97Y | SEAL, filterbox, top (not illustrated) | S1 1997 | |
| 35 | 29423-97Y | SEAL, snorkel (not illustrated) | S1 1997 | |
| 36 | P1764.C | SNORKEL, outer, airbox (not illustrated) | S1 1997 | Oct 2009 |
| 37 | 29428-97Y | BOX, air filter | S1 1997 | |
| 38 | 29429-97Y | PLATE, backing | S1 1997 | |
| 39 | P1715.C | COVER, air box | S1 1997 | Feb 2017 |
| 40 | AN0804.3CBBL | SCREW (external snorkel to air filter box) (not illustrated) (9) | S1 1997 | Feb 2010 |
| 41 | AN0808.3CZB | SCREW (backing plate to front isolator) (not illustrated) | S1 1997 | |
| 42 | AA0406.3CBL | SCREW (air box cover) (not illustrated) (2) | S1 1997 | Oct 2013 |
| 43 | AA0412.2CBBL | SCREW (backplate to carburetor) (not illustrated) (3) | S1 1997 |
