XB12X Ulysses Parts Catalog
2007

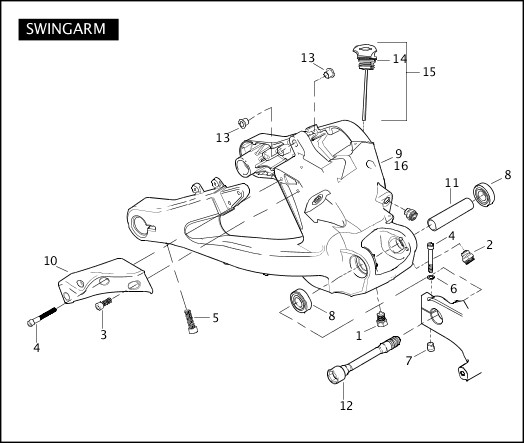

SWINGARM
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 11105 | O-RING, oil drain plug (not illustrated) | XB12X | ||
| 1 | 60328-98A | PLUG, oil drain | XB12X | |
| 2 | 63579-06 | FITTING | XB12X | |
| 3 | AA0508.2CZB | SCREW (3) | XB12X | Feb 2017 |
| 4 | AA0520.2CXZB | SCREW | XB12X | |
| 5 | AA0712.2CZB | SCREW, axle head | XB12X | Jun 2016 |
| 6 | CB0002.T | WASHER, pinch bolt | XB12X | |
| 7 | CD0002.T | NUT | XB12X | |
| 8 | E0006.02A8 | BEARING, swingarm (2) | XB12X | |
| 9 | K0003.1AKYBP | SWINGARM, w/ 1, 2, 8, 11, 13, 15 & label(s) (AUSTRALIA, CANADA, DOMESTIC, ENGLAND, EUROPE) (graphite grey) | XB12X | |
| 10 | K0101.1AKYBP | BRACE, swingarm (graphite grey) | XB12X | Feb 2017 |
| 11 | K0158.1AK | SPACER, swingarm bearing | XB12X | |
| 12 | K0200.02A8B | SHAFT, swingarm pivot | XB12X | |
| 13 | K0403.02A8 | BUSHING, rear shock (2) | XB12X | |
| 14 | Q0109.1AK | O-RING, oil filler plug | XB12X | |
| 15 | Q0127.1AK | OIL FILLER PLUG ASSEMBLY, w/ Q0109.1AK | XB12X | |
| 16 | K0002.1AKYBP | SWINGARM, w/ 1, 2, 8, 11, 13, 15 & label(s) (JAPAN) (graphite grey) | XB12X |
