1125 Models Parts Catalog
2009

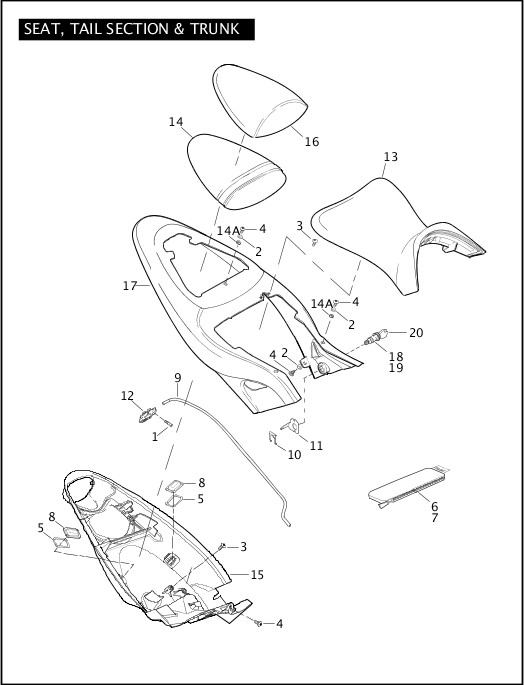

SEAT, TAIL SECTION & TRUNK
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 70345-84 | RETAINER, harness, tail section (not illustrated) | 1125CR, 1125R | ||
| 1 | A06020.2CVB | BOLT (2) | 1125CR, 1125R | Oct 2015 |
| 2 | BA0509.6 | WASHER (5) | 1125CR, 1125R | |
| 3 | CA0023.1AM | SCREW (7) | 1125CR, 1125R | |
| 4 | CA0030.1AMA | SCREW, shoulder (6) | 1125CR, 1125R | |
| 5 | C0074.1AK | TAPE, 2-sided | 1125CR, 1125R | |
| 6 | C2024.1AM | TOOL KIT, w/ 72462-00, C0123.1AA, C2000.1AM, C2040.02A8, C2041.02A8A, C2045.1AK, C2048.1AM, C2049.1AM, C2050.1AM, C2051.1AM, C2052.1AM, Y0011.K | 1125CR, 1125R | Feb 2017 |
| 72462-00 | FUSE, 10-amp (tool kit) (not illustrated) | 1125CR, 1125R | ||
| 7 | C2000.1AM | POUCH (tool kit) | 1125CR, 1125R | |
| C0123.1AA | CABLE, security (tool kit) (not illustrated) | 1125CR, 1125R | ||
| C2040.02A8 | WRENCH, axle 7/8 (tool kit) (not illustrated) | 1125CR, 1125R | Feb 2017 |
|
| C2041.02A8A | SCREWDRIVER, 4-in-1 (tool kit) (not illustrated) | 1125CR, 1125R | Feb 2017 |
|
| C2045.1AK | HEX KEY, 5mm, L-style (tool kit) (not illustrated) | 1125CR, 1125R | ||
| C2048.1AM | WRENCH, 3mm, ball end (tool kit) (not illustrated) | 1125CR, 1125R | Feb 2017 |
|
| C2049.1AM | TORX KEY, T30, L-style (tool kit) (not illustrated) | 1125CR, 1125R | Feb 2017 |
|
| C2050.1AM | WRENCH, rear shock, spanner (tool kit) (not illustrated) | 1125CR, 1125R | ||
| C2051.1AM | WRENCH, rear shock, handle spanner (tool kit) (not illustrated) | 1125CR, 1125R | ||
| C2052.1AM | WRENCH, combo 10/20mm (tool kit) (not illustrated) | 1125CR, 1125R | Feb 2017 |
|
| Y0011.K | FUSE, 15-amp (tool kit) (not illustrated) | 1125CR, 1125R | ||
| 8 | M0032.1AK | COVER, bungee hook, trunk | 1125CR, 1125R | |
| 9 | M0066.02A8 | CABLE, seat lock | 1125CR, 1125R | Feb 2017 |
| 10 | M0067.02A8 | RETAINER, seat lock | 1125CR, 1125R | Feb 2017 |
| 11 | M0068.02A8 | PLATE, seat lock | 1125CR, 1125R | Feb 2017 |
| 12 | M0069.02A8 | LATCH, seat lock | 1125CR, 1125R | Feb 2017 |
| 13 | M0090.02A8 | SEAT, rider, complete | 1125CR, 1125R | Feb 2017 |
| 14 | M0091.02A8 | SEAT, passenger, complete | 1125CR, 1125R | |
| 14A | M0704.02A8 | GROMMET (2) | 1125CR, 1125R | Feb 2017 |
| 15 | M0756.1AMB | TRUNK | 1125CR, 1125R | Feb 2017 |
| 16 | M1087.02A8MW | COWL, passenger seat (midnight black) | 1125CR, 1125R | |
| M1087.02A8MAW | COWL, passenger seat (arctic white) | 1125CR, 1125R | ||
| M1087.02A8MBK | COWL, passenger seat (racing red) | 1125CR, 1125R | ||
| 17 | M1664.1ATMBK | TAIL SECTION KIT, w/ decal (racing red) | 1125CR | |
| M1664.1ATMW | TAIL SECTION KIT, w/ decal (midnight black) | 1125CR | ||
| M1664.1AMMW | TAIL SECTION KIT, w/ decal (midnight black) | 1125R | ||
| M1664.2AMMAW | TAIL SECTION KIT, w/ decal (arctic white) | 1125R | ||
| M1664.2AMMBK | TAIL SECTION KIT, w/ decal (racing red) | 1125R | ||
| 18 | Y0602.02A8 | COMPLETE VEHICLE LOCK SET, w/ seat, ignition, fuel cap & key(s) | 1125R | Feb 2017 |
| C0290.1AT | COMPLETE VEHICLE LOCK SET, w/ seat, ignition, fuel cap & key(s) | 1125CR | Nov 2014 |
|
| 19 | Y0725.02A8 | LOCK, seat w/ key | 1125CR, 1125R | |
| 20 | Y0732.T | KEY SET (specify four - digit key code) | 1125CR, 1125R |
