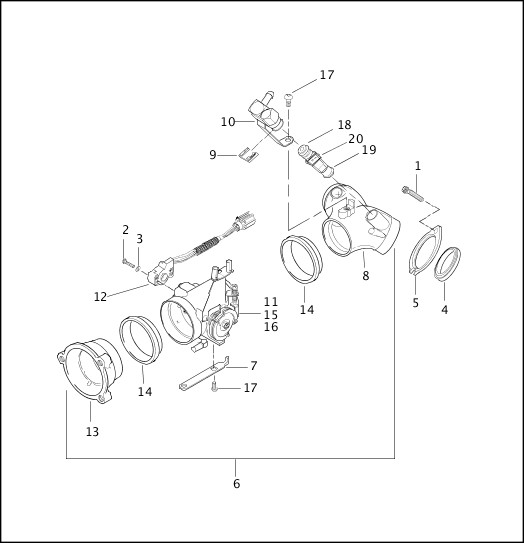

INDUCTION MODULE - ELECTRONIC FUEL INJECTION

Part Image Missing
Index No. Part No. Description Models Obselete
1 3275 SCREW (4) ALL
2 3323Y SCREW (2) ALL
Nov 2014
3 6090Y WASHER (2) ALL
Jul 2015
4 26995-86B SEAL, intake manifold (2) ALL
5 27009-86A MOUNTING FLANGE, front ALL
27010-86A MOUNTING FLANGE, rear (not illustrated) ALL
6 27232-99YB INDUCTION MODULE ASSEMBLY, fuel, w/ 8, 9, 10, 11, 12, 13, 14 & 20 ALL
7 27257-99Y BRACKET, retainer ALL
8 29532-99YA INTAKE MANIFOLD ALL
9 29534-99Y INJECTOR CLIP (2) ALL
10 29535-99Y FUEL RAIL ASSEMBLY ALL
11 29536-99YA THROTTLE BODY ASSEMBLY ALL
12 29537-99Y THROTTLE POSITION SENSOR ALL
13 29538-99YA AIR INTAKE HORN ALL
14 29539-99Y SEAL, throttle body (2) ALL
15 C0131.K CABLE ASSEMBLY, idle adjustment ALL
Sep 2011
16 C0132.K SPRING, idle adjustment ALL
Nov 2009
17 CA0026.02A8 SCREW (3) ALL
Jul 2015
18 P0028.02A8 O-RING, fuel injector, inlet (2) ALL
19 P0029.02A8 O-RING, fuel injector, outlet (2) ALL
20 P0786.02A8 FUEL INJECTOR (2) ALL
>
