2000-2001 S3/S3T Thunderbolt Parts Catalog

2001
  1. Home
  2. Part
  3. Catalogs

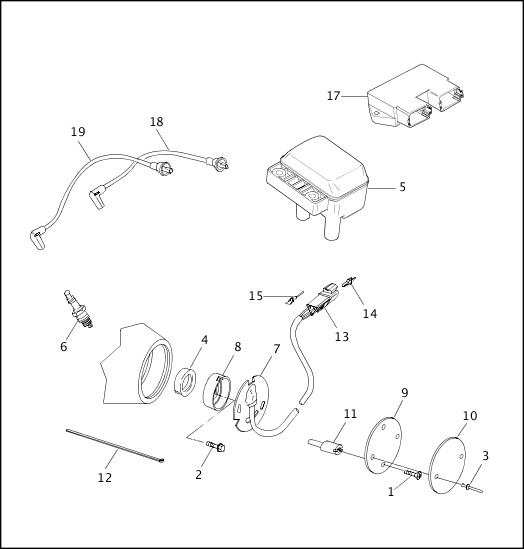

ELECTRONIC IGNITION SYSTEM

Part Image Missing
Index No. Part No. Description Models Obselete
1 1601 SCREW (2) ALL
2 2611C BOLT ALL
3 8699 POP RIVET (2) ALL
4 11124 SEAL ALL
5 31639-99 IGNITION COIL ALL
6 27661-00Y SPARK PLUG, No. 10R12 (2) ALL
7 32400-94A SENSOR ASSEMBLY, w/ terminal pins ALL
8 32422-98 TRIGGER ROTOR ALL
9 32504-80A COVER, timer, inner ALL
10 32602-99Y COVER, timer, outer S3 2000, S3T 2000
T0111.01A5 COVER, timer, outer S3 2001, S3T 2001
11 32606-82 STUD, timer plate (2) ALL
12 Y0303.2B CABLE STRAP ALL
13 72103-94BK RECEPTACLE, 3-pin (black) ALL
14 72143-94 SECONDARY LOCK, 3-pin receptacle (black) ALL
15 72190-94 TERMINAL, single socket (3) ALL
16 AA0408.21CRZ SCREW, ignition coil & control module mounting (not illustrated) (4) ALL
17 Y0152.KA CONTROL MODULE ASSEMBLY ALL
Nov 2014
N0326.QA CONTROL MODULE ASSEMBLY (Japan) ALL
18 Y0203.KA CABLE, spark plug, front ALL
Feb 2010
19 31981-99C CABLE, spark plug, rear S3 2000, S3T 2000
Y0204.01A1 CABLE, spark plug, rear S3 2001, S3T 2001
Feb 2014
>
