2000-2001 S3/S3T Thunderbolt Parts Catalog
2001

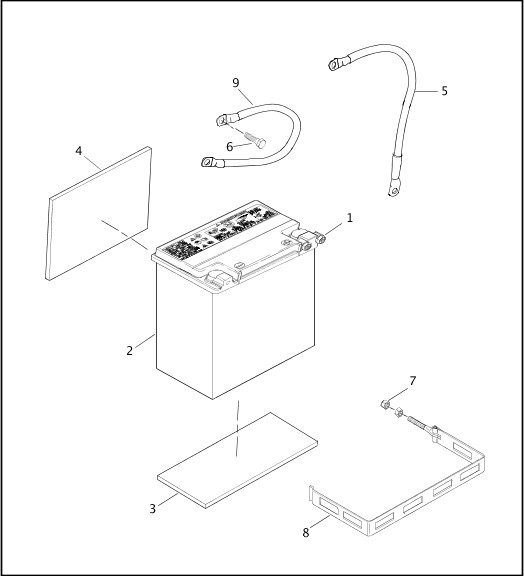

BATTERY
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 4312C | SCREW (2) | ALL | |
| 2 | 65989-97C | BATTERY | ALL | |
| 3 | 66117-97YA | PAD, battery, bottom | ALL | |
| 4 | 66118-97Y | PAD, battery, rear | ALL | |
| 5 | 70097-75B | CABLE ASSEMBLY, battery, positive | ALL | |
| 6 | AA0406.1CZ | SCREW | ALL | |
| 7 | DA0400.2FZ | LOCKNUT | ALL | |
| 8 | Y0123.B | STRAP ASSEMBLY, battery | ALL | Nov 2014 |
| 9 | Y0321.9A | CABLE ASSEMBLY, battery, negative | ALL |
