1995-1996 Buell S2/S2T Thunderbolt Parts Catalog

1996
  1. Home
  2. Part
  3. Catalogs

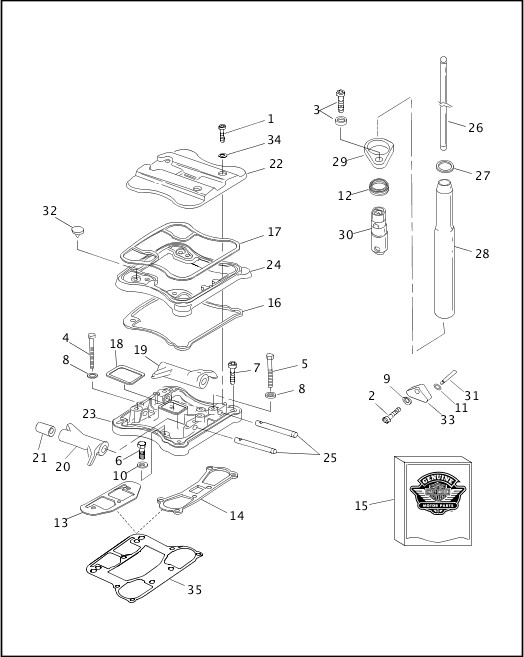

ROCKER ARMS, COVERS & PUSHRODS

Part Image Missing
Index No. Part No. Description Models Obselete
1 882 SCREW (8) ALL
2 94313-91TS SCREW (2) ALL
3 3201WA SCREW, w/ washer (4) ALL
4 3500A BOLT (4) ALL
5 3501A BOLT (4) ALL
6 3849 SCREW (6) ALL
7 891 SCREW, w/ washer (4) ALL
8 6016 WASHER (8) ALL
9 6099 WASHER (2) ALL
10 6736 WASHER (6) ALL
11 11176 O-RING (4) ALL
12 11190 O-RING, pushrod cover, upper (4) ALL
13 16778-84A GASKET, cylinder head, right (use 16800-84A) (2) ALL
14 16779-84B GASKET, cylinder head, left (use 16800-84A) (2) ALL
15 17036-91A GASKET KIT, rocker covers, w/ 16, 17, 18, 32 & 35 ALL
16 17353-89C GASKET, rocker cover, lower (2) ALL
17 17354-89 GASKET, rocker cover, upper (2) ALL
18 17358-84B GASKET, rocker cover, inner (2) ALL
19 17360-83A ROCKER ARM, front intake & rear exhaust (2) ALL
20 17375-83A ROCKER ARM, front exhaust & rear intake (2) ALL
21 17429-91 BEARING, rocker arm (8) ALL
22 17501-86B ROCKER COVER, outer (2) ALL
23 17532-86E ROCKER COVER, inner (2) ALL
24 17533-90A SPACER, rocker cover (2) ALL
25 17611-83 SHAFT, rocker arm (4) ALL
26 17897-89A PUSHROD, intake (2) ALL
17904-89A PUSHROD, exhaust (2) ALL
27 17944-89 SEAL, pushrod cover (4) ALL
28 17946-89 COVER, pushrod (4) ALL
29 17952-91 RETAINER, pushrod, front intake & rear exhaust (2) ALL
17953-91 RETAINER, pushrod, front exhaust & rear intake (2) ALL
30 18526-89A TAPPET, w/ roller (4) ALL
31 18532-89 PIN, anti-rotation (2) ALL
32 26856-89A VALVE, umbrella (2) ALL
33 36804-89 PIN PLATE (2) ALL
34 63858-49 GASKET (8) ALL
35 16800-84A GASKET, rocker cover/cylinder head, valve & pushrod sides (replaces 16778-84A & 16779-84B) ALL
>
