1995-1996 Buell S2/S2T Thunderbolt Parts Catalog
1996

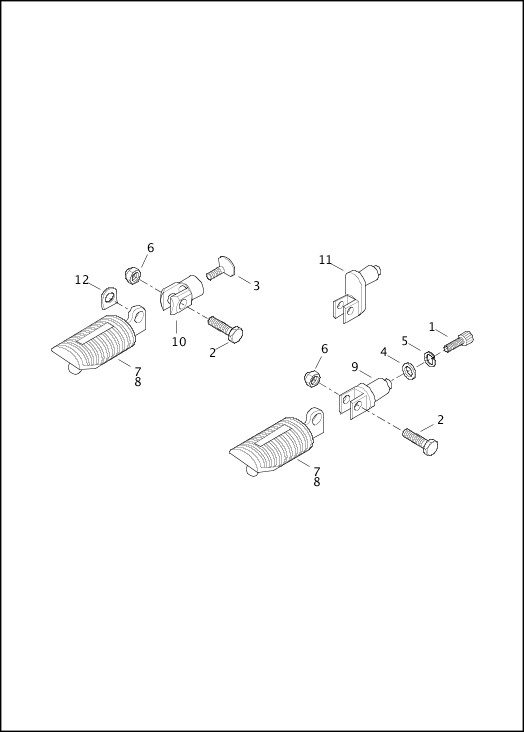

FOOTRESTS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0508.2CZB | SCREW (2) | ALL | Feb 2017 |
| 2 | AA0612.1CZ | BOLT (4) | ALL | |
| 3 | AA0810.5FZ | SCREW (2) | ALL | Feb 2010 |
| 4 | BA0511.2Z | WASHER (2) | ALL | |
| 5 | BA0509.8Z | LOCKWASHER (2) | ALL | |
| 6 | DA0600.2CZ | LOCKNUT (4) | ALL | |
| 7 | 50643-82 | FOOTREST, w/ cover, right (2) | ALL | |
| 50647-82 | FOOTREST, w/ cover, left (2) | ALL | ||
| 8 | 50646-82 | COVER, footrest (4) | ALL | |
| 9 | N0400.3A | FOOTREST MOUNT (2) | S2 1995, S2 1996 | |
| 10 | N0550.8 | FOOTREST MOUNT, passenger (2) | ALL | Feb 2010 |
| 11 | N0410.8 | FOOTREST MOUNT, low, left | S2T | Nov 2014 |
| N0420.8 | FOOTREST MOUNT, low, right | S2T | Nov 2014 |
|
| 12 | 50912-72 | SPRING WASHER (2) | ALL |
