House of BUELL

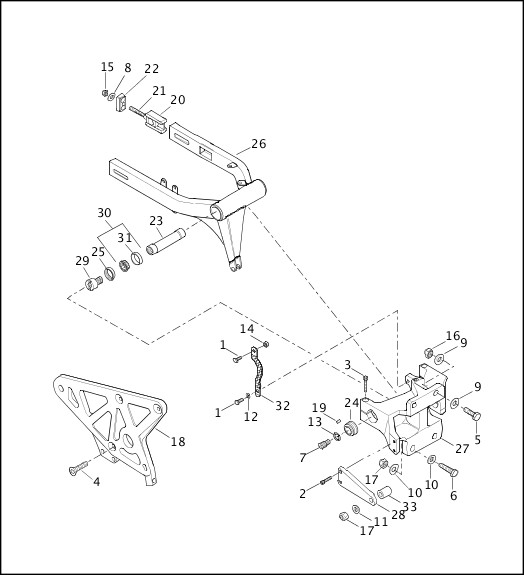

Index No.	Part No.	Description	Models	Obselete
1	AA0506.1CZ	BOLT (2)	ALL
2	AA0508.2CZB	SCREW (2)	ALL	Feb 2017
3	S1002.02A8	SCREW (2)	ALL
4	AA0612.5CZ	SCREW (6)	ALL	Feb 2010
5	AA0714.1CZ	BOLT (2)	ALL
6	3269Y	BOLT (2)	ALL	Apr 2010
7	AA1006.10FKZB	SCREW (2)	ALL	Nov 2014
8	BA0613.2Z	WASHER (2)	ALL
9	BA0714.3Z	WASHER (4)	ALL
10	6062Y	WASHER (4)	ALL	Feb 2010
11	BA0817.2Z	WASHER	ALL	Feb 2010
12	BA0509.8Z	LOCKWASHER	ALL
13	BA1016.1WZ	LOCKWASHER (2)	ALL	Nov 2014
14	DA0500.2CZ	LOCKNUT	ALL
15	DA0600.2CZ	LOCKNUT	ALL
16	DA0700.13CZ	LOCKNUT (2)	ALL
17	DA0800.13CZ	LOCKNUT (3)	ALL
18	K0503.8QQ	ISOLATOR MOUNT, right (polished)	S2 1995, S2 1996	Mar 2013
	K2504.8A	ISOLATOR MOUNT, left (polished)	S2 1995, S2 1996	Dec 2009
	K0503.A	ISOLATOR MOUNT, right (gray)	S2T	Apr 2010
	K2504.A	ISOLATOR MOUNT, left (gray)	S2T	Sep 2010
19	K0506.2A	PIN, isolator mount (2)	ALL	Nov 2014
20	K0300.2C	AXLE CARRIER (2)	ALL	Nov 2014
21	K0301.2A	STUD, axle carrier (2)	ALL	Nov 2014
22	41136-94YA	AXLE ADJUSTER PLATE (2)	ALL
23	K0200.2QQ	PIVOT SHAFT	ALL	Feb 2010
24	47564-86B	REAR ISOLATOR (2)	ALL
25	FA3850.5	SEAL, swingarm (2)	ALL
26	47589-94Y	SWINGARM (not illustrated)	S2 1995
	47589-96Y	SWINGARM (illustrated)	S2 1996, S2T
27	K0500.8H	MOUNT BLOCK, swingarm	ALL	Dec 2012
28	47600-94YA	SWINGARM/DRIVE SUPPORT ASSEMBLY, w/ 47955-97Y	ALL
29	K0505.2QQ	ADJUSTING BOLT, bearing (2)	ALL	Feb 2010
30	48300-60	ROLLER BEARING, w/ 48315-60 (2)	ALL
31	48315-60	BEARING CUP (2)	ALL
32	70186-82	GROUND STRAP	ALL
33	47955-97Y	SPACER	ALL
34	C0500.8	SET SCREW (not illustrated)	ALL	Jul 2012
35	66501-96Y	SLEEVE (not illustrated)	ALL
