1995-1996 Buell S2/S2T Thunderbolt Parts Catalog
1996

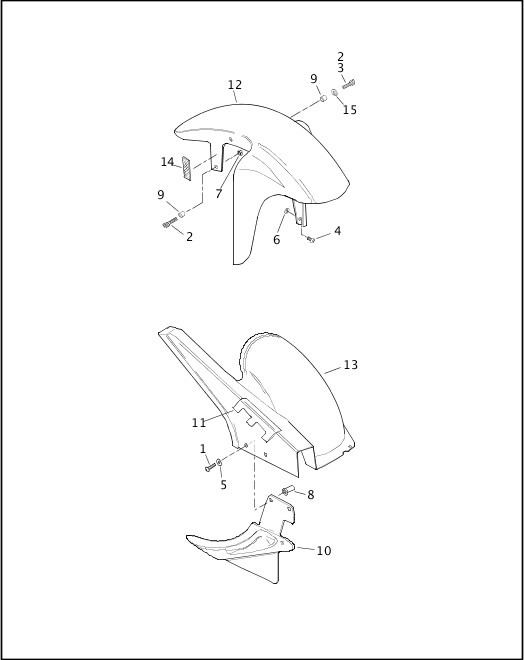

FENDERS & LOWER BELT GUARD
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0406.8CSS | SCREW (5) | ALL | Mar 2013 |
| 2 | AA0408.3CZ | SCREW, 2 used on 1995 S2 models prior to VIN 1337 and Cal. VIN 0052 | ALL | Feb 2010 |
| 3 | 2865Y | SCREW, used on 1995 S2 models VIN 1337, Cal. VIN 0052 and after, this longer screw is required to mount the speedo cable wire guide | ALL | Feb 2010 |
| 4 | A0610.3CZ | SCREW (2) | ALL | Feb 2010 |
| 5 | BA0412.6 | WASHER, plastic (6) | ALL | Oct 2013 |
| 6 | BA0409.6BL | WASHER, plastic (2) | ALL | |
| 7 | DA0400.2CZ | LOCKNUT (2) | ALL | |
| 8 | 64511-63 | WELL NUT (5) | ALL | |
| 9 | N0163.4 | SPACER, plastic (2) | ALL | Feb 2010 |
| 10 | M0560.8A | BELT GUARD, lower, carbon fiber | S2 1995 | May 2010 |
| M0560.AA | BELT GUARD, lower, black | S2 1996, S2T | Apr 2010 |
|
| 11 | M0555.8 | WEAR GUARD | ALL | Feb 2010 |
| 12 | M2662.8 | FENDER, front, w/ reflectors (unpainted) | ALL | Nov 2014 |
| 58776-94Y | FENDER, front, w/ reflectors (Caribbean Candy Blue) (use M2662.8) | S2 1995 | ||
| 58777-94Y | FENDER, front, w/ reflectors (Black Sapphire) (use M2662.8) | S2 1995, S2 1996 | ||
| 58778-94Y | FENDER, front, w/ reflectors (Red Snap) (use M2662.8) | S2 1995 | ||
| 58779-94Y | FENDER, front, w/ reflectors (Ice White Pearl) (use M2662.8) | S2 1995, S2 1996 | ||
| 58780-94Y | FENDER, front, w/ reflectors (Yellow Jacket Pearl) (use M2662.8) | S2 1995 | ||
| 59361-96Y | FENDER, front, w/ reflectors (Canyon Red) (use M2662.8) | S2 1996 | ||
| 59362-96Y | FENDER, front, w/ reflectors (Quicksilver Metallic) (use M2662.8) | S2T | ||
| 59360-96Y | FENDER, front, w/ reflectors (Parkway Blue) (use M2662.8) | S2 1996, S2T | ||
| 13 | M1550.A | FENDER, rear, carbon fiber | S2 1995 | Apr 2012 |
| 59734-96Y | FENDER, rear, black | S2 1996, S2T | ||
| 14 | 59256-84A | REFLECTOR, amber (2) | ALL | |
| 15 | B0613.1Z | WASHER (used on 1995 S2 models VIN 1337, Cal. VIN 0052 and after) | ALL |
