1995-1996 Buell S2/S2T Thunderbolt Parts Catalog

1996
  1. Home
  2. Part
  3. Catalogs

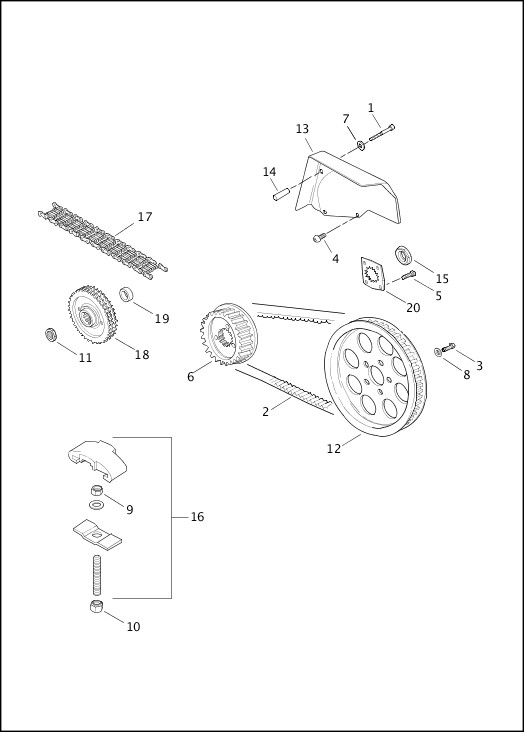

BELTS & SPROCKETS

Part Image Missing
Index No. Part No. Description Models Obselete
1 AA0416.2CBZ SCREW ALL
Nov 2014
2 G0500.8 BELT, drive, 128T ALL
3 AA0712.1CZ BOLT (5) ALL
Nov 2014
4 AN0803.3CBZ SCREW (2) ALL
Feb 2010
5 3594 SCREW (2) ALL
6 40205-95 SPROCKET, transmission, 29T (belt) ALL
7 B0613.1Z WASHER ALL
8 BA0714.3Z WASHER (5) ALL
9 7667 NUT ALL
10 7804 LOCKNUT, sealing ALL
11 7839 NUT, engine sprocket ALL
12 G0400.8A SPROCKET, rear wheel, 61T (belt) (black) ALL
Nov 2014
13 G0555.7A COVER, belt ALL
Apr 2010
14 34929-94Y SPACER ALL
15 35211-91B NUT, transmission sprocket ALL
16 39975-90A CHAIN ADJUSTER ASSEMBLY ALL
17 40005-57B PRIMARY CHAIN ALL
18 40235-89B ENGINE SPROCKET, 35T ALL
19 40240-89 SPACER, sprocket ALL
20 40251-92A LOCK PLATE ALL
>
