1995-1996 Buell S2/S2T Thunderbolt Parts Catalog
1996

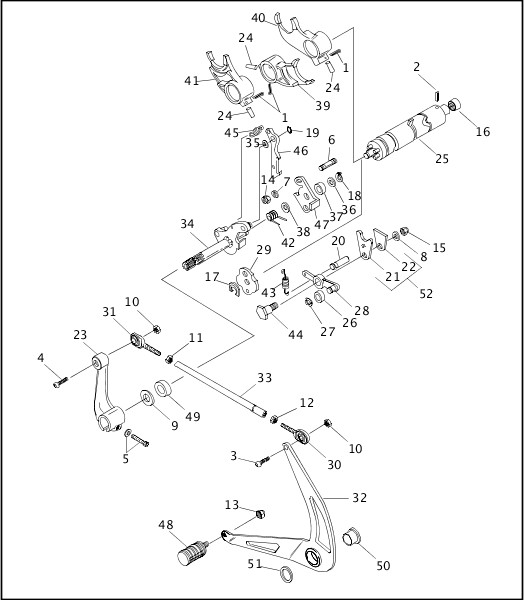

SHIFTER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 515 | COTTER PIN (3) | ALL | |
| 2 | 601 | ROLL PIN | ALL | |
| 3 | AA0407.3CBZ | SCREW | ALL | |
| 4 | 3088 | SCREW | ALL | |
| 5 | 4741A | SCREW, w/ washer | ALL | |
| 6 | 5226B | STUD (2) | ALL | |
| 7 | 6016 | WASHER, detent arm (2) | ALL | |
| 8 | 6099 | WASHER, lever (3) | ALL | |
| 9 | 7019 | WASHER (rubber) | ALL | |
| 10 | DA0400.3CZ | LOCKNUT (2) | ALL | |
| 11 | DA0400.4FLZ | JAMNUT, left-hand thread | ALL | Oct 2012 |
| 12 | DA0400.4CZ | JAMNUT | ALL | Nov 2014 |
| 13 | DA0500.11FZ | LOCKNUT | ALL | |
| 14 | 7683 | LOCKNUT (2) | ALL | |
| 15 | 7739 | LOCKNUT, detent arm | ALL | |
| 16 | 9151 | BEARING, closed end | ALL | |
| 17 | 11019 | RETAINING RING | ALL | |
| 18 | 11031 | RETAINING RING | ALL | |
| 19 | 11185 | RETAINING RING | ALL | |
| 20 | 24530-90 | PIN, spring | ALL | |
| 21 | 33178-90A | PLATE, shift drum (use 33178-90B) | ALL | |
| 22 | 33204-91 | PLATE, shift drum (use 33178-90B) | ALL | |
| 23 | 34615-94 | SHIFT LEVER, front | ALL | |
| 24 | 33319-90 | ROLLER (3) | ALL | |
| 25 | 33634-91A | SHIFTER DRUM ASSEMBLY, w/ 601 | ALL | |
| 26 | 33652-90 | ROLLER, detent | ALL | |
| 27 | 33653-90 | RETAINING RING | ALL | |
| 28 | 33655-90 | DETENT ARM | ALL | |
| 29 | 33656-90A | PLATE, detent | ALL | |
| 30 | N0606.2 | ROD END, male | ALL | |
| 31 | N0612.2 | ROD END, male, left-hand thread | ALL | Nov 2014 |
| 32 | N1601.8 | SHIFT LEVER (used on 1995 S2 models prior to VIN 0979) | S2 1995 | Jun 2013 |
| N0611.8A | SHIFT LEVER (used on 1995 S2 models VIN 0979 and after) | ALL | Nov 2014 |
|
| 33 | 33805-94Y | SHIFT ROD (used on 1995 S2 models prior to VIN 0979) | S2 1995 | |
| N0606.8 | SHIFT ROD (used on 1995 S2 models VIN 0979 and after) | ALL | Apr 2010 |
|
| N0605.8 | SHIFT ROD | S2T | Nov 2014 |
|
| 34 | 34015-91 | SHIFTER SHAFT | ALL | |
| 35 | 34073-91 | SPACER, pawl | ALL | |
| 36 | 34075-89 | WASHER | ALL | |
| 37 | 34076-89 | BUSHING | ALL | |
| 38 | 34077-91 | WASHER | ALL | |
| 39 | 34142-89C | SHIFTER FORK, first & second | ALL | |
| 40 | 34144-89C | SHIFTER FORK, third & fifth | ALL | |
| 41 | 34147-89C | SHIFTER FORK, fourth | ALL | |
| 42 | 34481-91A | SPRING | ALL | |
| 43 | 34483-90 | SPRING | ALL | |
| 44 | 34486-90 | SCREW, detent arm | ALL | |
| 45 | 34491-91 | SPRING | ALL | |
| 46 | 34492-91 | SHIFTER PAWL | ALL | |
| 47 | 34560-91 | BASEPLATE | ALL | |
| 48 | 34611-65A | SHIFTER PEG | ALL | |
| 49 | 37101-84B | OIL SEAL | ALL | |
| 50 | N0513.2A | BUSHING | ALL | Nov 2014 |
| 51 | N0514.2 | THRUST WASHER | ALL | Nov 2014 |
| 52 | 33178-90B | PLATE KIT, shift drum | ALL |
