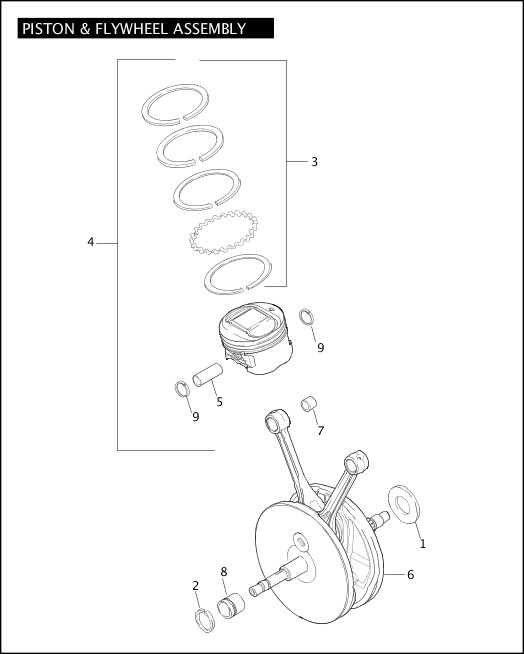

PISTON & FLYWHEEL ASSEMBLY
| Index No. |
Part No. |
Description |
Models |
Obselete |
| 1 |
8972
|
WASHER |
ALL |
|
| 2 |
11177A
|
RETAINING RING |
ALL |
|
| 3 |
21948-02
|
PISTON RING SET, standard (2) |
ALL |
|
|
22231-04
|
PISTON RING SET, 0.005 O.S. (2) |
XB12R |
|
|
22238-04
|
PISTON RING SET, 0.010 O.S. (2) |
XB12R |
|
| 4 |
22244-04A
|
PISTON & RINGS ASSEMBLY, standard (2) |
XB12R |
|
|
22707-02A
|
PISTON & RINGS ASSEMBLY, standard (2) |
XB9R |
|
| 5 |
22765-02
|
PISTON PIN (2) |
ALL |
|
| 6 |
24213-02A
|
FLYWHEEL & CONNECTING ROD ASSEMBLY, w/ 24354-87A & 24658-87 |
XB9R |
|
|
24215-04A
|
FLYWHEEL & CONNECTING ROD ASSEMBLY, w/ 24354-87A & 24658-87 |
XB12R |
|
| 7 |
24331-36
|
BUSHING, piston pin, standard (2) |
ALL |
|
|
24332-36
|
BUSHING, piston pin, 0.01 O.S. (2) |
ALL |
|
|
24354-87A
|
BEARING SET, connecting rod, narrow & wide (not illustrated) |
ALL |
|
| 8 |
24658-87
|
INNER RING |
ALL |
|
| 9 |
22589-83B
|
LOCK RING, piston pin (2) |
ALL |
|
