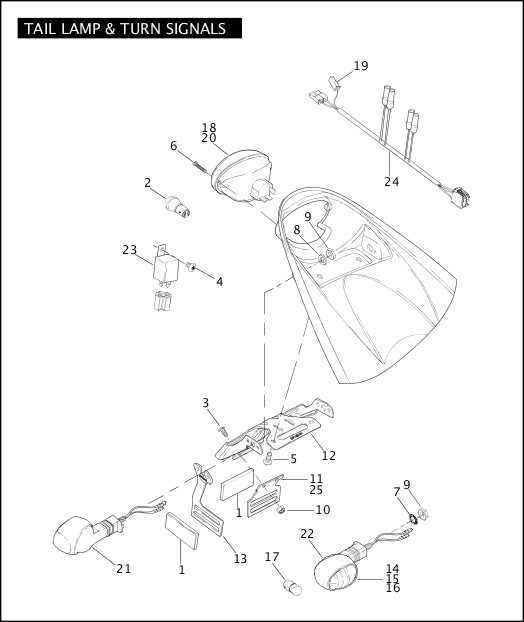

TAIL LAMP & TURN SIGNALS

Part Image Missing
Index No. Part No. Description Models Obselete
1 59259-90 REFLECTOR, red (3) ALL
2 68169-90A BULB, tail light ALL
3 AA0404.10CSS SCREW (2) ALL
Oct 2015
4 AA0404.11CVB SCREW ALL
Nov 2014
5 AA0406.11CVB SCREW (2) ALL
6 AN0808.14CSS SCREW (2) ALL
Feb 2017
7 B0800.4Z WASHER, turn signal mounting (2) ALL
8 BA0511.2Z WASHER (2) ALL
9 D0800.4FZ JAM NUT, jam (4) ALL
10 DA0400.8CZ LOCKNUT (2) ALL
11 L0542.02A8 BRACKET, rear reflector (Domestic) ALL
Jul 2015
12 M0755.02A8 BRACKET, license plate ALL
13 M2232.4A8YT BRACKET KIT, side reflector ALL
14 Y0039.K LENS, outer turn signal (4) ALL
15 Y0040.K LENS, inner turn signal (4) ALL
16 Y0041.K SCREW, turn signal lens (4) ALL
17 Y0042.K BULB, turn signal (4) ALL
18 Y0043.02A8 LENS, tail light ALL
19 Y0085.02A8 CONNECTOR, single black, tail light wire harness ALL
20 Y0401.1AD TAIL LIGHT, w/ lens & bulb ALL
21 Y0503.02A8A TURN SIGNAL, right rear/left front, w/ Y0039.K, Y0040.K, Y0041.K & Y0042.K (2) ALL
22 Y0504.02A8A TURN SIGNAL, left rear/right front, w/ Y0039.K, Y0040.K, Y0041.K & Y0042.K (2) ALL
23 Y0621.MD FLASHER, turn signal ALL
24 YH350.02A8 HARNESS, tail light wiring ALL
25 L0541.02A8 BRACKET, rear reflector (Australia, Canada, England, Europe, Japan) ALL
Oct 2015
M0644.02A8 LICENSE PLATE HOLDER (Australia) (not illustrated) ALL
Jul 2015
>
