Firebolt Models Parts Catalog
2004

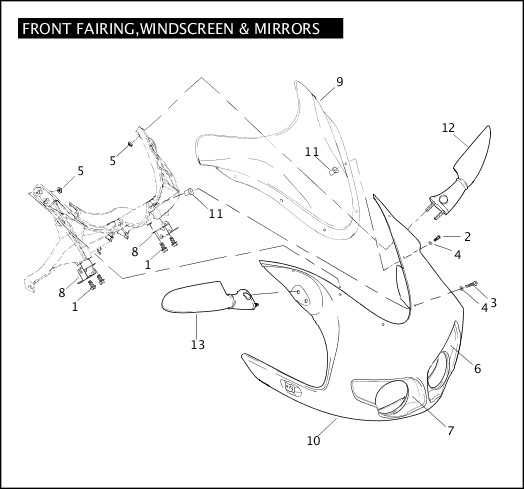

FRONT FAIRING, WINDSCREEN & MIRRORS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0406.21CRZ | SCREW (4) | ALL | |
| 2 | AN1005.3FSS | SCREW (4) | ALL | |
| 3 | AN1010.3FSS | SCREW (2) | ALL | Feb 2017 |
| 4 | CB0009.02A8 | WASHER, nylon (6) | ALL | |
| 5 | D0600.2CZ | LOCKNUT (4) | ALL | |
| 6 | M0064.02A8 | BEZEL, front fairing, left, black w/ tape | ALL | |
| 7 | M0065.02A8 | BEZEL, front fairing, right, black w/ tape | ALL | Feb 2017 |
| 8 | M0073.02A8 | FUSE BLOCK CARRIER (2) | ALL | Feb 2017 |
| 9 | M0600.02A8MBG | WINDSHIELD (clear) | XB9R | Nov 2014 |
| M0600.02A8MBH | WINDSHIELD (amber) | XB12R | ||
| 10 | M1646.1AAMBK | FAIRING ASSEMBLY, front w/ decals (racing red) | XB12R | |
| M1646.1AAMW | FAIRING ASSEMBLY, front w/ decals (midnight black) | XB12R | ||
| M1646.2A8MBB | FAIRING ASSEMBLY, front w/ decals (battle blue) | XB9R | Nov 2014 |
|
| 11 | M0703.02A8 | WELL NUT (6) | ALL | |
| 12 | N0161.2A8 | MIRROR, left | ALL | |
| 13 | N0162.2A8 | MIRROR, right | ALL |
