Firebolt Models Parts Catalog
2004

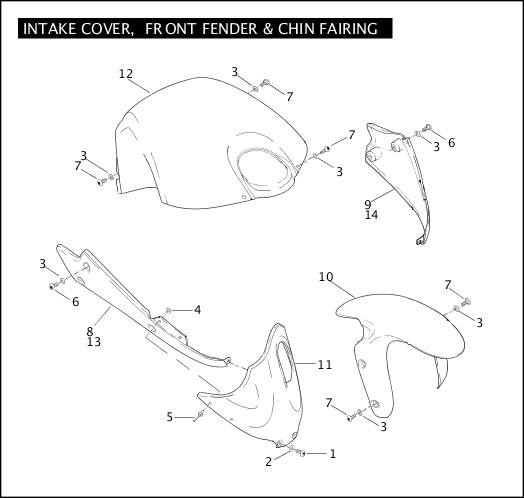

INTAKE COVER, FRONT FENDER & CHIN FAIRING
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0404.11CXVB | SCREW (2) | ALL | Nov 2014 |
| 2 | BA0409.6BL | WASHER (2) | ALL | |
| 3 | BA0509.6 | WASHER, nylon (13) | ALL | |
| 4 | BA0308.1BL | WASHER, black (4) | ALL | |
| 5 | C0520.02A8 | RIVET, black (4) | ALL | |
| 6 | CA0012.02A8 | SCREW, shoulder (5) | ALL | |
| 7 | CA0018.02A8 | SCREW, shoulder (8) | ALL | |
| 8 | M0647.02A8AMBK | CHIN FAIRING, right (racing red) | XB12R | |
| M0647.02A8AMW | CHIN FAIRING, right (midnight black) | XB12R | Feb 2017 |
|
| 9 | M0648.02A8AMBK | CHIN FAIRING, left (racing red) | XB12R | |
| M0648.02A8AMW | CHIN FAIRING, left (midnight black) | XB12R | Feb 2017 |
|
| 10 | M0662.02A8MBB | FENDER, front (battle blue) | XB9R | Nov 2014 |
| M0662.02A8MBK | FENDER, front (racing red) | XB12R | ||
| M0662.02A8MW | FENDER, front (midnight black) | XB12R | Feb 2017 |
|
| 11 | M0698.02A8AMBE | CHIN FAIRING, center (black) | XB9R | |
| M0698.02A8AMBQ | CHIN FAIRING, center (magnesium tone) | XB12R | ||
| 12 | M1224.1AAMBK | INTAKE COVER ASSEMBLY, w/ decals (racing red) | XB12R | |
| M1224.1AAMW | INTAKE COVER ASSEMBLY, w/ decals (midnight black) | XB12R | ||
| M1224.2A8MBB | INTAKE COVER ASSEMBLY, w/ decals (battle blue) | XB9R | Nov 2014 |
|
| 13 | M1647.02A8AMBB | CHIN FAIRING KIT, right, w/ silver/white decal (battle blue) | XB9R | |
| 14 | M1648.02A8AMBB | CHIN FAIRING, left, w/ silver/white decal (battle blue) | XB9R |
