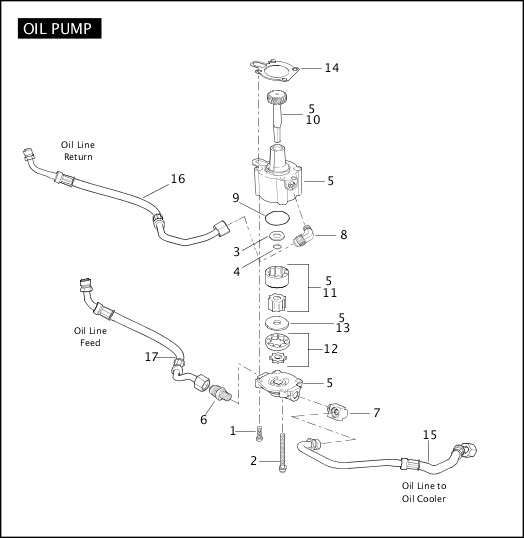

OIL PUMP

Part Image Missing
Index No. Part No. Description Models Obselete
1 4132 SCREW (used w/ 26357-02A & 26357-02B) (2) ALL
2 4765 SCREW, sems (2) ALL
3 6157 WASHER (used w/ 26357-02A & 26357-02B) ALL
4 11002 RETAINING RING (used w/ 26357-02A & 26357-02B) ALL
5 26357-02A OIL PUMP, complete (use 26357-02B) ALL
26357-02B OIL PUMP, complete (replaces 26357-02A) ALL
6 26358-02A FITTING, connector (used w/ 26357-02A & 26357-02B) ALL
7 26359-02A FITTING, connector, 45 degree (used w/ 26357-02A & 26357-02B) ALL
8 26361-02A FITTING, 90 degree (used w/ 26357-02A & 26357-02B) ALL
9 26434-91 O-RING (used w/ 26357-02A & 26357-02B) ALL
10 26239-07 GEAR SHAFT (used w/ 26357-02B) ALL
11 26502-07 GEROTOR SET, return (used w/ 26357-02B) ALL
12 26492-91 GEROTOR SET, feed (used w/ 26357-02A) ALL
26503-07 GEROTOR SET, feed (used w/ 26357-02B) ALL
13 26493-91 SEPARATOR PLATE (used w/ 26357-02A) ALL
14 26495-89B GASKET, pump mounting ALL
15 HS0008.1AD OIL LINE, cooler feed ALL
16 HS0023.1AD OIL LINE, return ALL
17 HS0022.1AD OIL LINE, feed ALL
