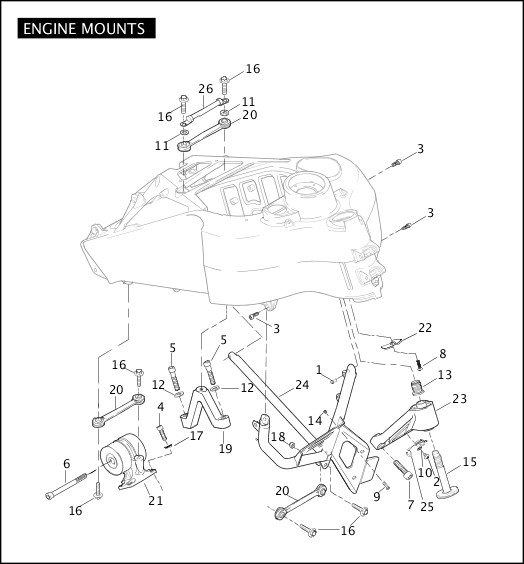

ENGINE MOUNTS

Part Image Missing
Index No. Part No. Description Models Obselete
1 11604 RIVNUT (4) ALL
2 AA0404.11CXVB SCREW ALL
Nov 2014
3 AA0405.2CXZB SCREW (3) ALL
4 AA0508.2CZB SCREW (4) ALL
Feb 2017
5 AA0615.2CZB SCREW (2) ALL
6 AA0634.2CZB SCREW ALL
Jan 2017
7 AA0712.2CZB SCREW (2) ALL
Jun 2016
8 AN0805.5CSS SCREW ALL
Feb 2017
9 AN1004.2CZ SCREW (3) ALL
10 B0613.1Z WASHER ALL
11 BA0511.2Z WASHER (2) ALL
12 BA0613.2Z WASHER (2) ALL
13 C0028.02A8A THREAD INSERT ALL
14 C0089.4A8 INSERT (3) ALL
15 CA0013.02A8 BOLT, front isolator ALL
16 CA0015.02A8 BOLT, flange head (6) ALL
17 CB0013.02A8 WASHER (4) ALL
Feb 2017
18 DA0500.2CZ LOCKNUT ALL
19 L0160.02A8A MOUNT, center tiebar ALL
Feb 2017
20 L0500.02A8 TIEBAR ASSEMBLY (3) ALL
Feb 2017
21 L0502.02A8 ISOLATOR ASSEMBLY, rear ALL
22 L0506.02A8 SNUBBER, front isolator upper ALL
Feb 2017
23 L1501.02A8 ISOLATOR ASSEMBLY, front, w/ CA0013.02A8 ALL
24 L1511.4A8YT W BRACKET ASSEMBLY, w/ 1, 9 & 14 (designer black) ALL
25 N0012.1AAA WIREFORM, clutch cable ALL
26 Y0307.02A8 STRAP, ground ALL
Feb 2017
>
