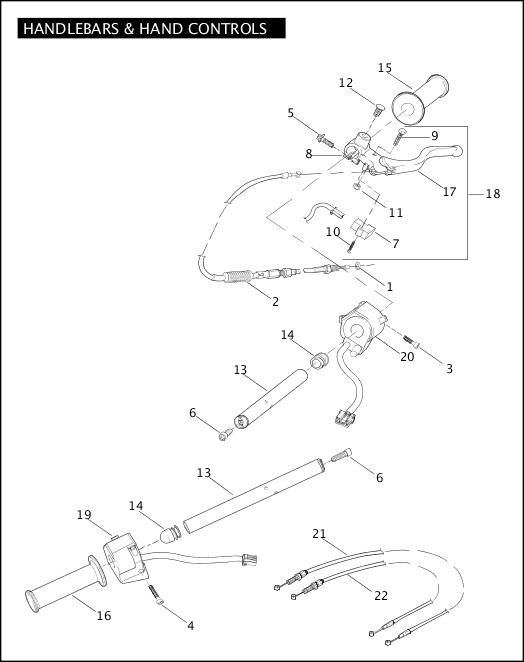

HANDLEBARS & HAND CONTROLS

Part Image Missing
Index No. Part No. Description Models Obselete
1 11179 O-RING ALL
2 38627-02D CLUTCH CABLE ALL
3 CA0052.5AA SCREW (3) ALL
4 CA0053.5AA SCREW ALL
5 A0622.21CBL SCREW, clutch lever pinch ALL
6 AA0508.2CXZB SCREW (2) ALL
C0048.02A8 CLAMP, lower clutch cable (not illustrated) ALL
Nov 2014
7 C0145.T SWITCH, clutch lever ALL
8 C0149.T BRACKET, clutch lever ALL
9 CA0002.TA BOLT, switch lever assembly ALL
10 CA0006.TA SCREW, switch mounting ALL
11 CD0001.T NUT, clutch lever assembly ALL
12 N0001.B PLUG, mirror mount ALL
13 N0002.02A8 HANDLEBAR, clip-on (2) ALL
14 N0010.02A8 END CAP (2) ALL
15 N0050.K HAND GRIP, left ALL
16 N0051.K HAND GRIP, right ALL
17 N1102.02A8 CLUTCH LEVER, w/ CA0002.TA & CD0001.T ALL
18 N0104.02A8 CLUTCH LEVER ASSEMBLY, w/ 7, 8, 9, 10, 11 & 17 ALL
Oct 2015
19 N0158.TA SWITCH GEAR, right ALL
20 N0159.TB SWITCH GEAR, left ALL
21 N0307.02A8A CABLE, throttle control ALL
22 N0308.02A8A CABLE, idle control ALL
>
