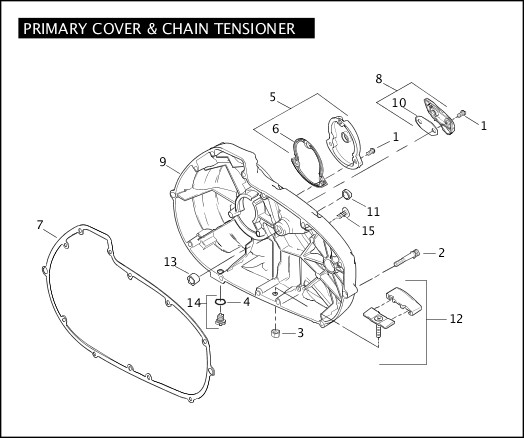

PRIMARY COVER & CHAIN TENSIONER

Part Image Missing
Index No. Part No. Description Models Obselete
1 943 SCREW, sems (5) ALL
2 4820A SCREW, sems (13) XB9R
4824 SCREW, sems (black) (13) XB12R
Oct 2015
3 7804 LOCKNUT, chain adjustment ALL
4 11105 O-RING ALL
5 25349-03 COVER KIT, clutch w/ 25377-03A ALL
6 25377-03A GASKET, clutch cover ALL
7 25378-02B GASKET, primary cover ALL
8 25380-03 COVER KIT, inspection w/ 34819-03 ALL
9 25521-02 PRIMARY COVER, w/ 40520-63 (painted black) XB9R
25542-04 PRIMARY COVER, w/ 40520-63 (painted magnesium tone) XB12R
10 34819-03A GASKET, inspection cover ALL
11 37101-84B OIL SEAL, shifter shaft ALL
12 40039-02C ADJUSTER ASSEMBLY, chain w/ shoe, collar, plate & screw ALL
13 40520-63 BUSHING ALL
14 60328-98B DRAIN PLUG, w/ 11105 ALL
15 C0230.T PLUG ALL
>
