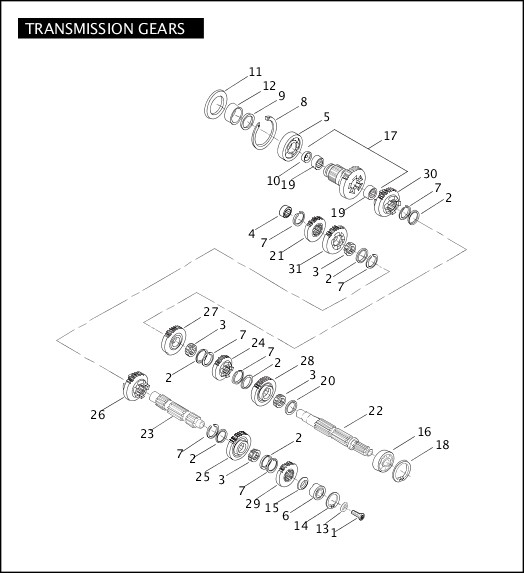

TRANSMISSION GEARS

Part Image Missing
Index No. Part No. Description Models Obselete
1 3675 SCREW ALL
2 6003 WASHER (6) ALL
3 8876A BEARING (4) ALL
4 8977 BEARING, closed end ALL
5 8996A BEARING, ball ALL
6 8998 BEARING ALL
7 11067 RETAINING RING (7) ALL
8 11161 RETAINING RING ALL
9 11165 QUAD SEAL ALL
10 12030 OIL SEAL ALL
11 12067B OIL SEAL ALL
12 33344-94 SPACER ALL
13 35020-89 RETAINER, countershaft ALL
14 35021-89 RETAINING RING ALL
15 35022-89A SPACER ALL
16 35030-89A BEARING ALL
17 35034-94 GEAR ASSEMBLY, fifth-mainshaft w/ oil seal & needle bearing ALL
18 35038-89A RETAINING RING ALL
19 35051-89A BEARING, needle (2) ALL
20 35063-89 SPACER ALL
21 35633-94 GEAR, fifth-countershaft ALL
22 35640-89 MAINSHAFT ALL
23 35641-89 COUNTERSHAFT ALL
24 35762-02 GEAR, first-mainshaft ALL
25 35763-89A GEAR, first-countershaft ALL
26 35771-94 GEAR, third-countershaft ALL
27 35772-94 GEAR, third-mainshaft ALL
28 35773-94 GEAR, fourth-mainshaft ALL
29 35775-94 GEAR, fourth-countershaft ALL
30 35796-00 GEAR, second-mainshaft ALL
31 35797-00 GEAR, second-countershaft ALL
>
