Firebolt Models Parts Catalog
2004

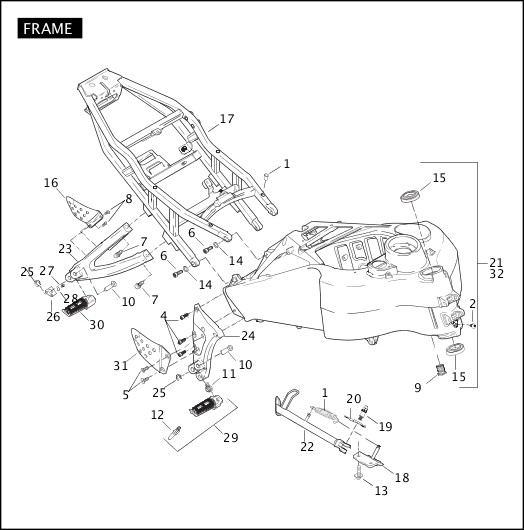

FRAME
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 11604 | RIVNUT | ALL | |
| 2 | 50005-85A | SPRING, sidestand | ALL | |
| 3 | AA0404.11CVB | SCREW | ALL | Nov 2014 |
| 4 | AA0406.2CZB | SCREW (5) | ALL | Feb 2017 |
| AA0409.5CZB | SCREW, rider left heel guard (not illustrated) | ALL | Feb 2017 |
|
| 5 | AA0404.5CZB | SCREW (3) | ALL | |
| 6 | AA0508.2CXZB | SCREW (4) | ALL | |
| 7 | AA0608.2CXZB | SCREW (4) | ALL | |
| 8 | AN1004.3FKZB | SCREW, passenger heel guards (4) | ALL | Feb 2017 |
| 9 | C0028.02A8A | THREAD, insert | ALL | |
| C0098.02A8 | HOSE CLIP, rider left heel guard (not illustrated) | ALL | Feb 2017 |
|
| 10 | C0235.02A8 | PIN, footpeg (4) | ALL | |
| 11 | C0249.02A8 | SPRING, rider right footpeg | ALL | Feb 2017 |
| C0250.02A8 | SPRING, rider left footpeg (not illustrated) | ALL | Feb 2017 |
|
| 12 | C0255.02A8 | WEAR PEG, rider footpeg (2) | ALL | |
| 13 | CA0015.02A8 | BOLT (2) | ALL | |
| 14 | CB0002.T | WASHER (4) | ALL | |
| 15 | E0002.02A8A | BEARING, race (2) | ALL | |
| 16 | L0079.02A8 | HEEL GUARD, right passenger | ALL | Feb 2017 |
| L0078.02A8 | HEEL GUARD, left passenger (not illustrated) | ALL | ||
| 17 | L0114.02A8 | SUBFRAME & BRACKET ASSEMBLY, w/ rear shock clamp | ALL | |
| 18 | L0152.5A8 | BRACKET ASSEMBLY, sidestand | ALL | |
| 19 | L0174.4A8 | PIVOT BOLT, sidestand | ALL | |
| 20 | L0203.1AA | PLATE, sidestand spring extension | ALL | |
| 21 | L0600.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Domestic) (See Fuel Tank & Pump for more information on kit.) | XB12R | Mar 2016 |
| L0600.2A8 | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Domestic) (See Fuel Tank & Pump for more information on kit.) | XB9R | Mar 2016 |
|
| L0605.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (California) (See Fuel Tank & Pump for more information on kit.) | XB12R | Mar 2016 |
|
| L0605.2A8 | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (California) (See Fuel Tank & Pump for more information on kit.) | XB9R | Mar 2016 |
|
| 22 | L1167.02A8 | SIDESTAND LEG ASSEMBLY, w/ L0174.4A8 & N0425.02A8 | ALL | |
| N0054.2ADYBD | BRACKET, footpeg mount left, passenger (fluid silver) (not illustrated) | XB9R | ||
| N0054.2ADYBP | BRACKET, footpeg mount left, passenger (graphite grey) (not illustrated) | XB12R | ||
| 23 | N0055.2ADYBD | BRACKET, footpeg mount right, passenger (fluid silver) | XB9R | |
| N0055.2ADYBP | BRACKET, footpeg mount right, passenger (graphite grey) | XB12R | ||
| 24 | N0401.02A8 | BRACKET, footpeg mount right, rider (fluid silver) | XB9R | |
| N0401.02A8YBP | BRACKET, footpeg mount right, rider (graphite grey) | XB12R | Feb 2017 |
|
| N0402.02A8 | BRACKET, footpeg mount left, rider (fluid silver) (not illustrated) | XB9R | ||
| N0402.02A8YBP | BRACKET, footpeg mount left, rider (graphite grey) (not illustrated) | XB12R | Feb 2017 |
|
| 25 | N0425.02A8 | CLIP, footpeg (4) | ALL | |
| 26 | N0427.02A8A | DETENT PLATE, passenger (2) | ALL | |
| 27 | N0428.02A8 | SPRING, passenger footpeg (2) | ALL | Feb 2017 |
| 28 | N0429.02A8 | BALL, passenger (2) | ALL | |
| N0520.02A8 | FOOTPEG, rider, left, w/ wear peg (not illustrated) | ALL | ||
| 29 | N0521.02A8 | FOOTPEG, rider, right, w/ wear peg | ALL | |
| N0552.02A8 | FOOTPEG, passenger, left (not illustrated) | ALL | ||
| 30 | N0553.02A8 | FOOTPEG, passenger, right | ALL | |
| N0554.02A8 | HEEL GUARD, rider, left (not illustrated) | ALL | ||
| 31 | N0555.02A8 | HEEL GUARD, rider, right | ALL | |
| 32 | L0601.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Canada) | XB12R | Mar 2016 |
| L0601.2A8 | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Canada) | XB9R | Mar 2016 |
|
| L0602.02A8 | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (England, Europe) | XB9R | ||
| L0602.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (England, Europe) | XB12R | ||
| L0603.02A8 | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Australia) | XB9R | ||
| L0603.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Australia) | XB12R | Mar 2016 |
|
| L0604.02A8 | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Japan) | XB9R | ||
| L0604.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Japan) | XB12R | Mar 2016 |
